ASB-1080 Mono

Active

High-Speed Global Shutter Vision

Global Shutter USB-UVC Protocol Modular Optical Systems Onboard FPGA Processing

The ASB is a specialized monochrome camera for fast-moving industrial sorting and machine vision. Pixel data is transmitted directly to the onboard FPGA for low-latency on-device processing, ensuring perfect image integrity at high speeds.

Spectral Sensitivity

Visible/NIR
UV
VIS
NIR
SWIR
LWIR
400nm - 1µm

Technical Specifications

Sensor 1/2.9" Global Shutter CMOS
Resolution 1920 x 1080 (FHD)
Frame Rate 60 fps @ Full Res
Shutter Efficiency > 99.9%
Mount C/CS Mount
Interface DVP to FPGA / USB 3.0

Gallery & Demos

Module ASB 1080

Module ASB 1080

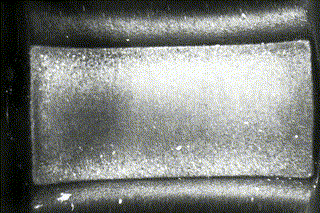

Application: Rubber Defect Detection (Animated)
gif

Application: Rubber Defect Detection (Animated)

video

Sensor Fusion (ASB + THR-LW)

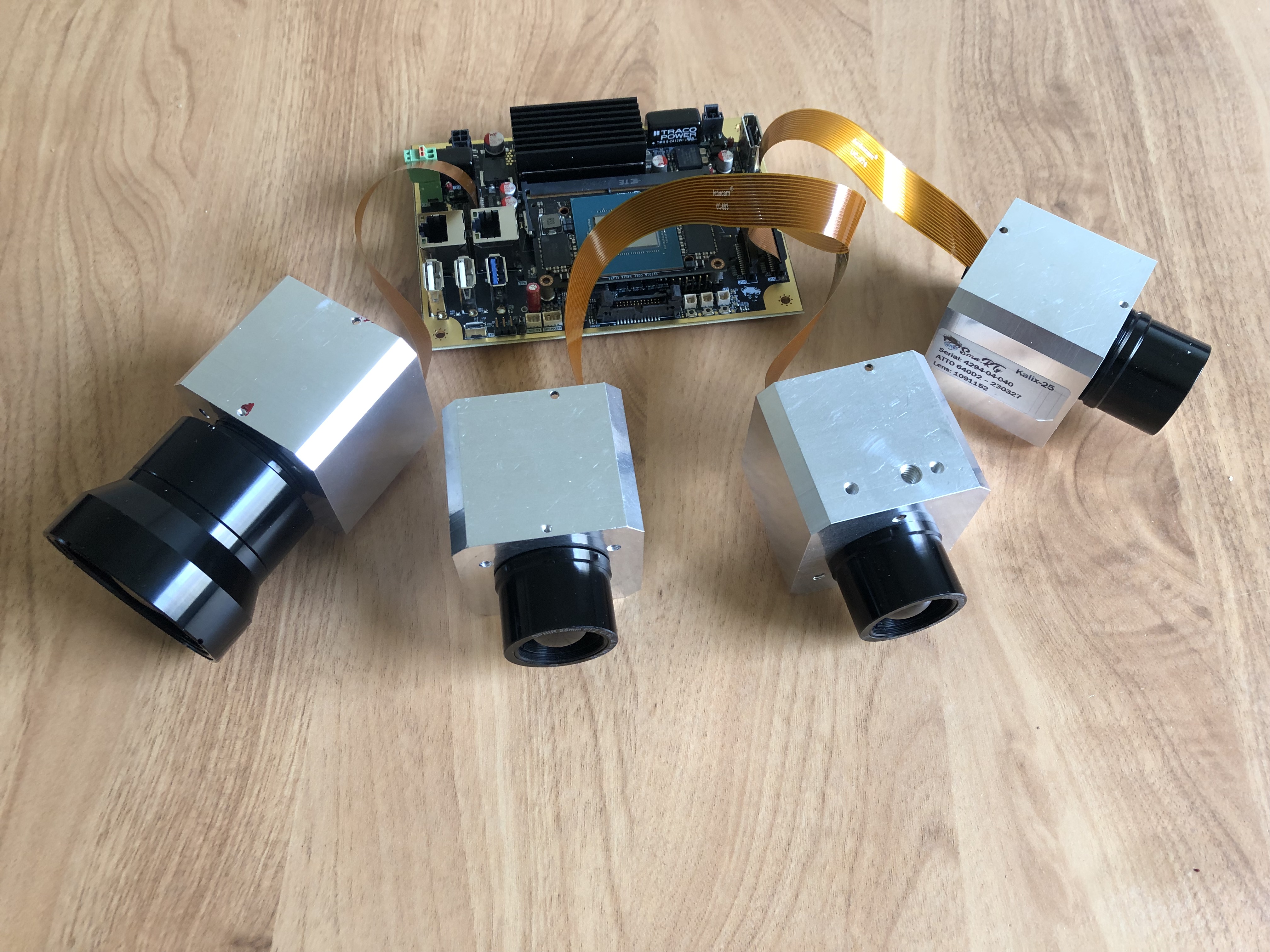

Multi-Sensor Installation

Multi-Sensor Installation
